C-Bar
C-BARS
HRB 400 & HRB 500
First time in Pakistan, Especially designed for CPEC Projects

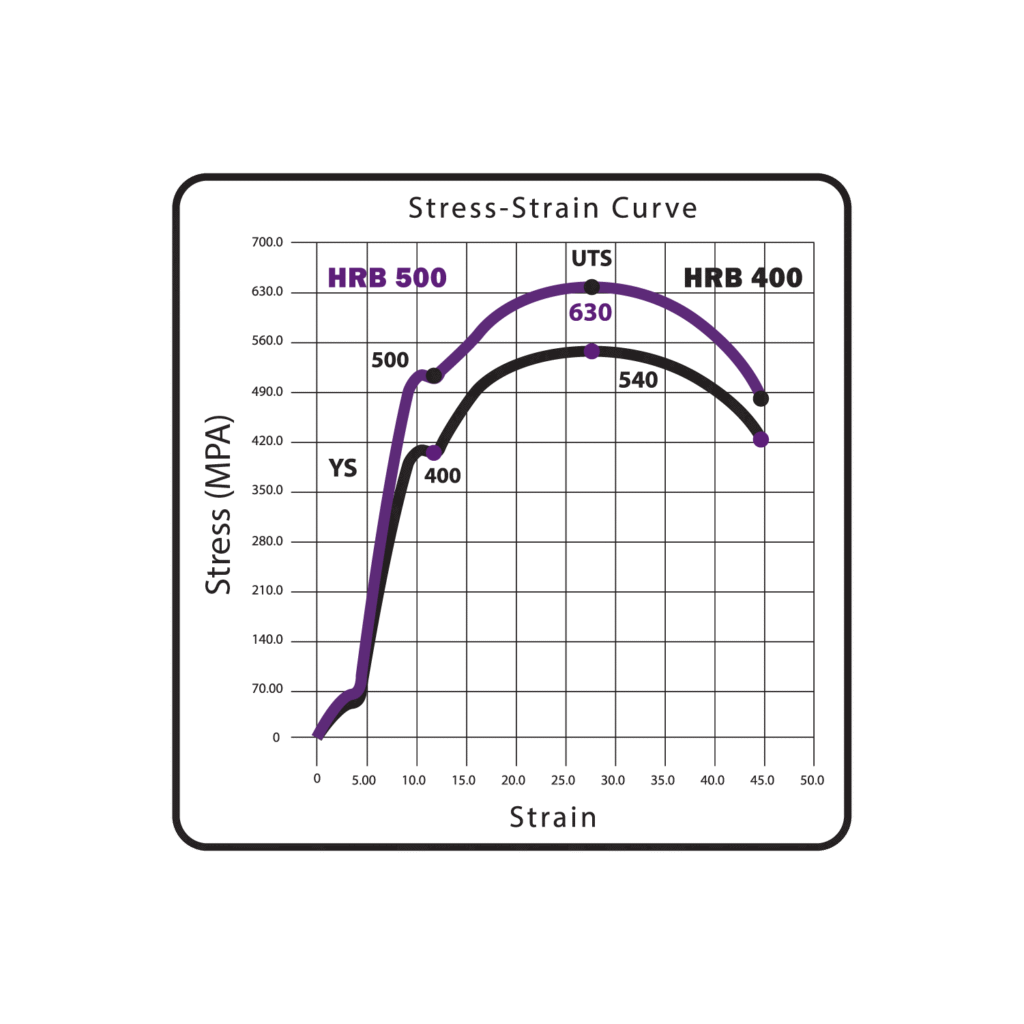

HRB 400
- Minimum Yield Strength : 58,000 PSI [400 MPA]
- Minimum Tensile Strength : 78,300 PSI [540 MPA]
- Elongation (%) : 16% after Fracture, 7.5% at Max Force
HRB 500
- Minimum Yield Strength : 72,500 PSI [500 MPA]
- Minimum Tensile Strength : 91,350 PSI [630 MPA]
- Elongation (%) : 15% after Fracture, 7.5% at Max Force
Key Features
- Unique Chinese Standard bars.
- Approved for construction on CPEC.
- Manufactured from a special composition of billet.
- Long-life bars.
BAR RECKNOR SIZES AS PER HRB 400 & HRB 500
| Diameter in mm | Cross-Sectional Area in mm | Reber weight kg, meter per ft | Min.Elongation % Maz.force |
|---|---|---|---|
| 6 | 28.27 | 0.222 | 7.5 |
| 8 | 50.27 | 0.395 | 7.5 |
| 10 | 78.54 | 0.617 | 7.5 |
| 12 | 113.1 | 0.888 | 7.5 |
| 14 | 153.9 | 1.21 | 7.5 |
| 16 | 201.1 | 1.58 | 7.5 |
| 18 | 254.5 | 2.00 | 7.5 |
| 20 | 314.2 | 2.47 | 7.5 |
| 22 | 380.1 | 2.98 | 7.5 |
| 25 | 490.9 | 3.85 | 7.5 |
| 28 | 615.8 | 4.83 | 7.5 |
| 32 | 804.2 | 6.31 | 7.5 |
| 36 | 1 018 | 7.99 | 7.5 |
| 40 | 1 257 | 9.87 | 7.5 |
| 50 | 1 964 | 15.42 | 7.5 |
